Mystiek-1540
MystiekSolinso supplies solar roof tiles in a variety of sizes. Solinso solar roof tiles are designed to fit a large part of commonly available flat roof tiles. Production is carried out in the Netherlands with high quality materials that have been tested and certified for rooftop applications.
Mounting instructions 1540-1555-1570
Datasheet Mystiek-1540
Product Manual Solinso Roof Tile
BouwConnect Bibliotheek

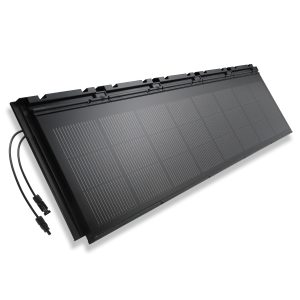

Solinso Mystiek-1540 solar rooftiles fit seamlessly to rooftiles Monier Tuile Plat, Monier Signy Finnez, Tejas Borja Flat10, Edillians HP10 en Planum La Escandella. The frontside glass sheet has a strong texture to minimise glare. One Mystiek-1540 solar rooftile replaces 5½ – 6½ clay tiles. The exact number depends on the selection of rooftile. 0 The side connections of roof tiles and solar roof tiles interlock perfectly without the need for concealed gutters, sealant or connection tape. Waterproofing is an intrinsic feature of the product design. The roof tile-specific installation instructions can be found on our downloads page.

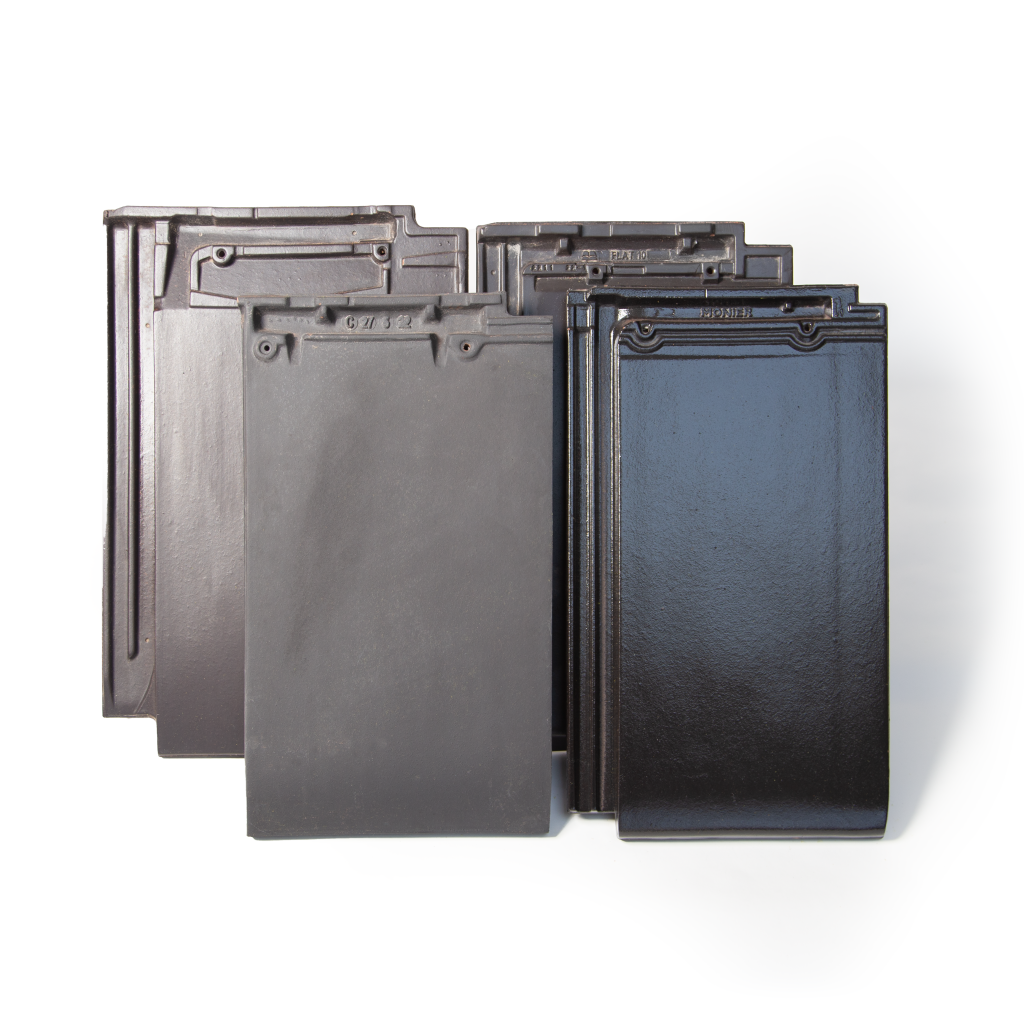

Mystiek-1540 roof tile combinations
| Rooftile | Working Width (mm) | Amount of Tiles | Match |
|---|---|---|---|
| Edilians HP-10 | 268 | 5¾ | 2 x 1540 = 11½ tiles |
| Tejas Borja Flat Tech 10 | 246 | 6¼ | 2 x 1540 = 12½ tiles |
| Erlus Linea | 246 | 6¼ | 2 x 1540 = 12½ tiles |
| La Escandella Planum | 237 | 6½ | 2 x 1540 = 13 tiles |
| Braas Turmalin | 237 | 6½ | 2 x 1540 = 13 tiles |
| Braas Signy Finez | 280 | 5½ | 2 x 1540 = 11 tiles |
