TerraCotta-1500
TerraCottaAll-in-one integration of solar energy with roof tiles in terra-cotta colour. TerraCotta-1500 solar roof tiles are made in the Netherlands using only quality materials specifically tested and certified for this application. With the production and testing equipment developed in-house by Solinso, a stable quality is guaranteed and everyone is assured of a robust solar system that will last for years.
Watt Peak
76 Wp
Watt Peak / m²
163 Wp/m²
Solar Cell Tech
M10 TOPCon
Working width
1498-1503 mm
Gauge
312-345 mm
Matching Roof Tiles

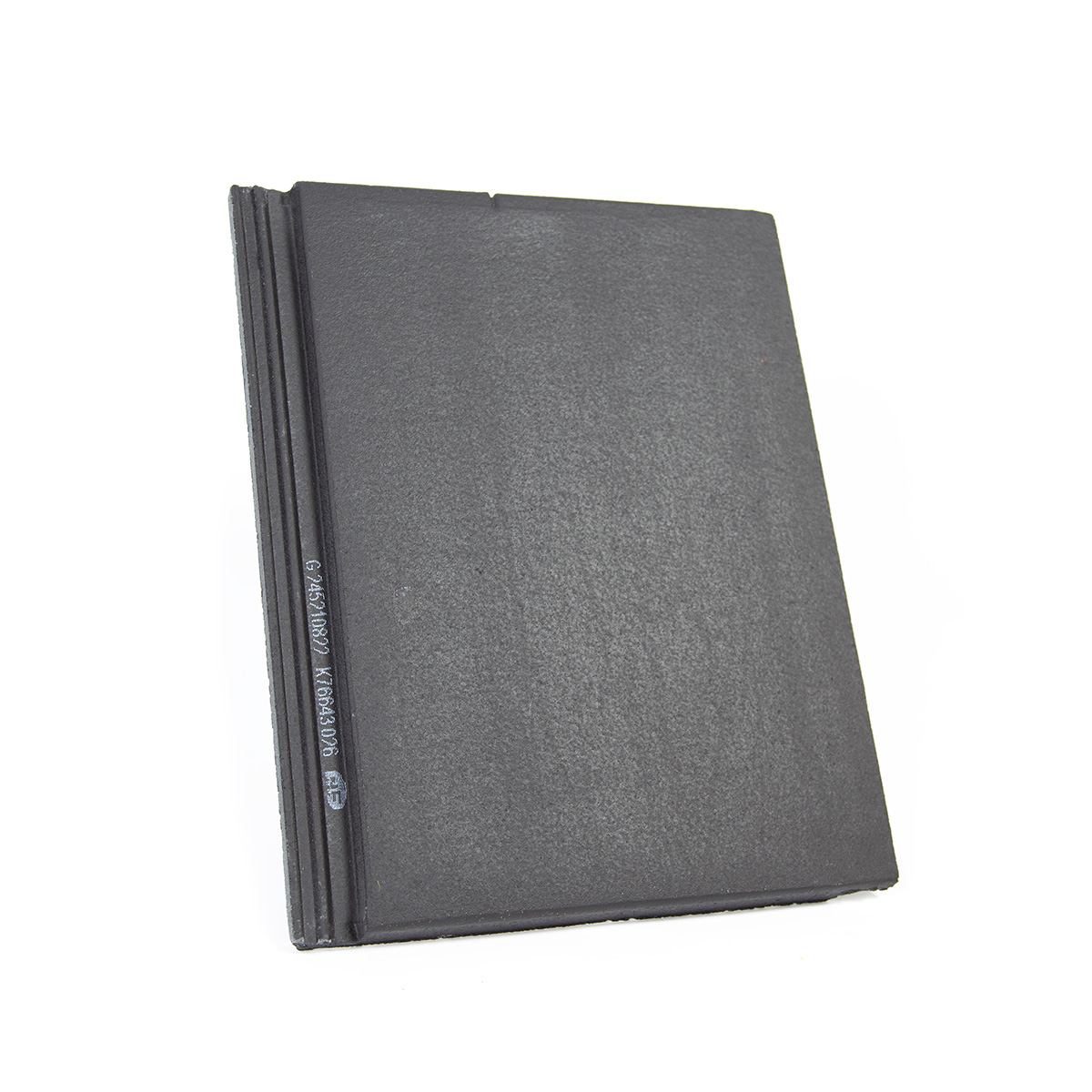

Nelskamp Planum
Nelskamp Finkenberger
Nelskamp Sigma
Nelskamp S-Tile
Braas Monier Tegalit
Braas Monier Sneldek
Braas Monier Doppel-S
Datasheet TerraCotta-1500
Product Manual Solinso Roof Tile
Mounting instructions 1500 & 900 with concrete roof tiles
Mounting instructions 1500 with concrete roof tiles
BouwConnect Bibliotheek
TerraCotta-1500 with Concrete roof tiles
Each Solinso solar system delivers excellent performance per m² and is compatible with a wide range of roof tiles. TerraCotta-1500 solar roof tiles from Solinso fit seamlessly with flat concrete roof tiles Nelskamp Planum or Monier Tegalit. With fitting pieces, TerraCotta-1500 can also be used on quick cover tiles. One TerraCotta-1500 solar roof tile replaces 5 roof tiles. The side connections of roof tiles and solar roof tiles connect without the need for concealed gutters, sealant or connection tape. Thus, waterproofing is intrinsic to the product design. The roof tile-specific installation instructions can be found on our web page www.totalpowerpoint.com/en/downloads.
